Among the 160, 180, and 200 frame sizes in the G2 range, the company has successfully added 160 frame size (up to 25 HP in 2004-05) and 180 frame size (up to 30 HP in 2008-09) to its continuous production range.
Induction Motors • High-Efficiency Low Operational Cost Series
Energy Efficient Motor IE1 & IE2
Designed with higher efficiency compared to standard motors. Conserves energy and minimizes running costs for the ultimate user with long-term durability, resulting in the shortest payback period on investment.
Purpose-engineered for ring spinning frames to extract cotton, polyesters, yarns of different counts, looming, and carding machines in high-vibration textile mills.
Induction Motors • High Starting Torque Heavy Duty Wound Rotors
Slip Ring Motor
Specialized motors featuring wound rotors designed specifically for heavy industrial applications requiring initial high starting torque, such as overhead cranes and industrial hoists.
Technical Highlights:
High Starting Torque Capability
Wound Rotor Configuration
Ideal for Cranes & Heavy Hoists
Primary Applications:
Overhead Cranes & Hoists • Heavy Duty Industrial Elevators • High Starting Torque Drives
Induction Motors • Hazardous Area & Explosion Safety Certified

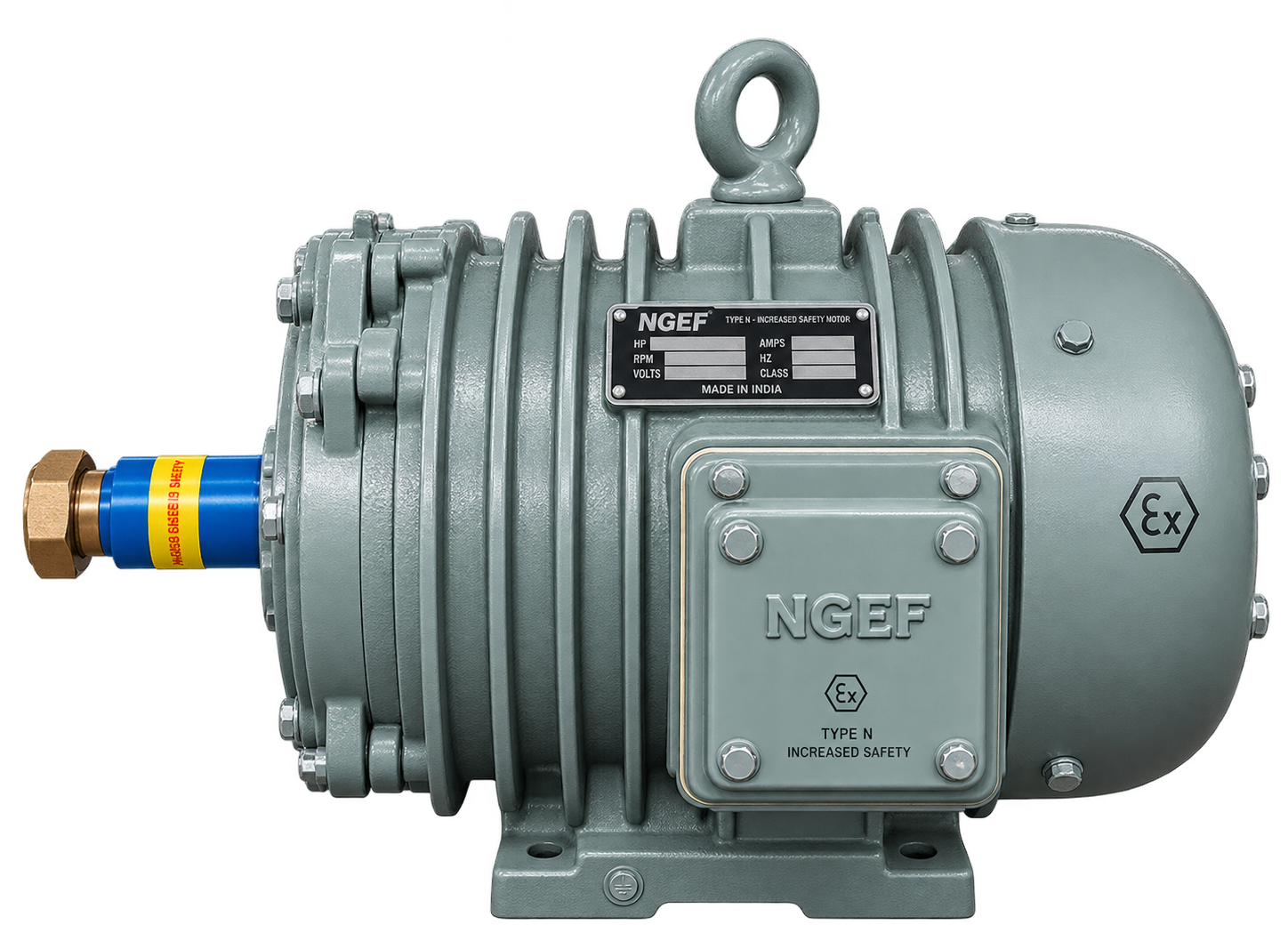

Increased Safety Motor / Type N-Motor
Engineered for hazardous industrial environments containing flammable gases. Designed to prevent internal or surface ignition in surrounding atmospheres, such as mines, petrochemical, fertilizer, and gas processing plants.

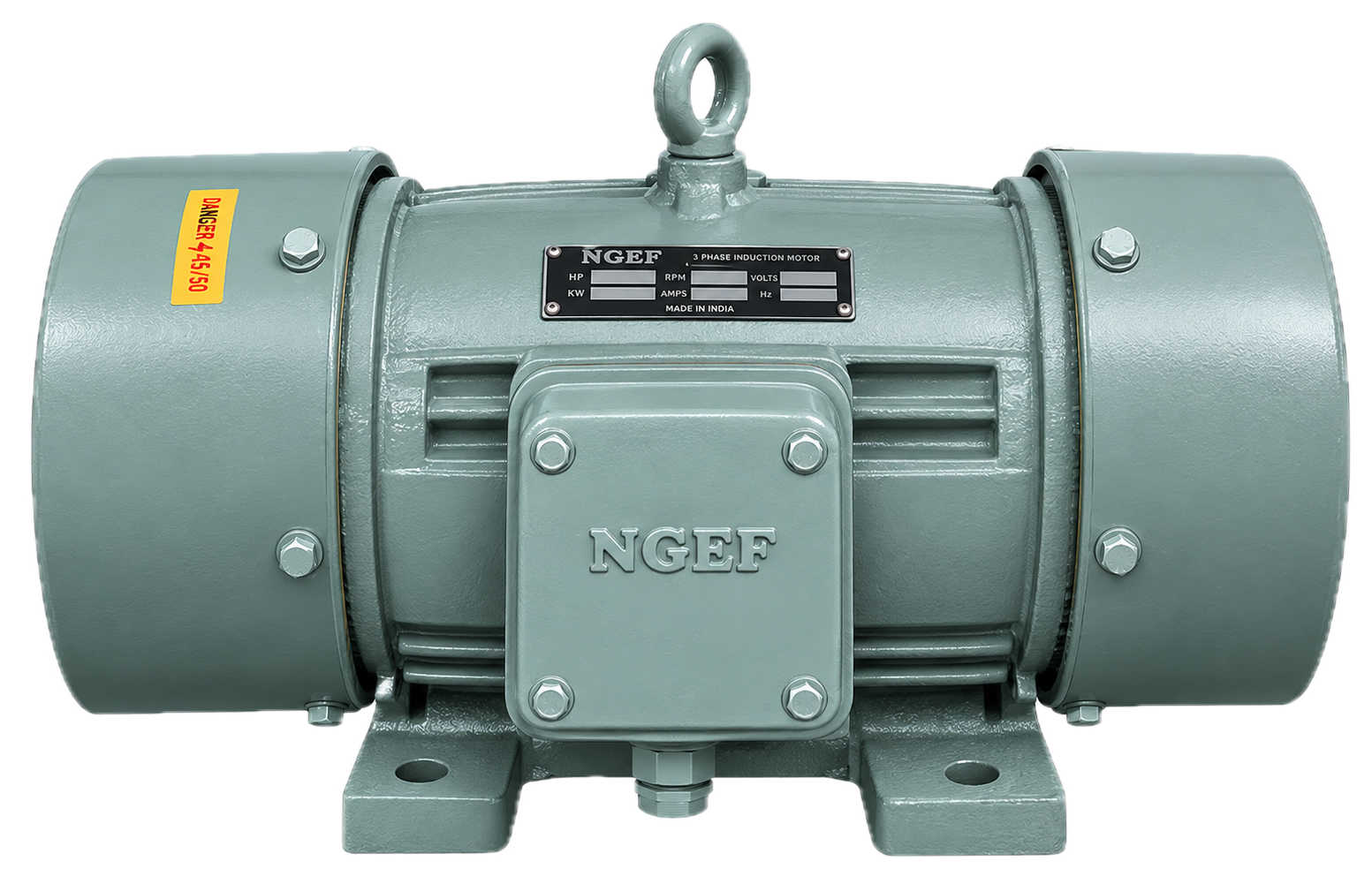

Specialized drive units engineered for vibrating screens and sorting equipment to separate out different material mixes in mining, processing, and aggregate facilities.
NGEF Transformers • Up to 60 MVA / 132 kV Class Transmission Unit
Power Transformer
Manufactured using unique non-hygroscopic materials with zero fear of moisture ingress. Filled with fire-safe K-class Natural Ester oil (flash point > 350°C, biodegradable) equipped with Sealed Breathing System & Online Oil Purifier.
Technical Specifications & Ratings
Ratings / CapacityUp to 60 MVA
Voltage Class11, 33, 66, 132 kV
StandardsIS – 1180, 2026-14, IEC – 60076
Cooling SystemKNAN (Flash Point > 300°C), ONAN, ONAF
High Voltage Transmission Grids • Primary Substation Complexes • Heavy Industrial Infrastructure
NGEF Transformers • Up to 5 MVA / 66 kV Grid Conversion Unit
Distribution Transformer
Built for urban and industrial distribution networks with non-hygroscopic insulation and biodegradable K-class Natural Ester fluid. Offers 50-year expected service life when operated under NGEF guidelines.
Technical Specifications & Ratings
Ratings / CapacityUp to 5 MVA
Voltage Class11, 33, 66 kV
StandardsIS – 1180, 2026-14, IEC – 60076
Cooling SystemKNAN (Flash Point > 300°C), ONAN, ONAF
NGEF Transformers • Up to 2.5 MVA / Class F-H Safe Indoor Unit

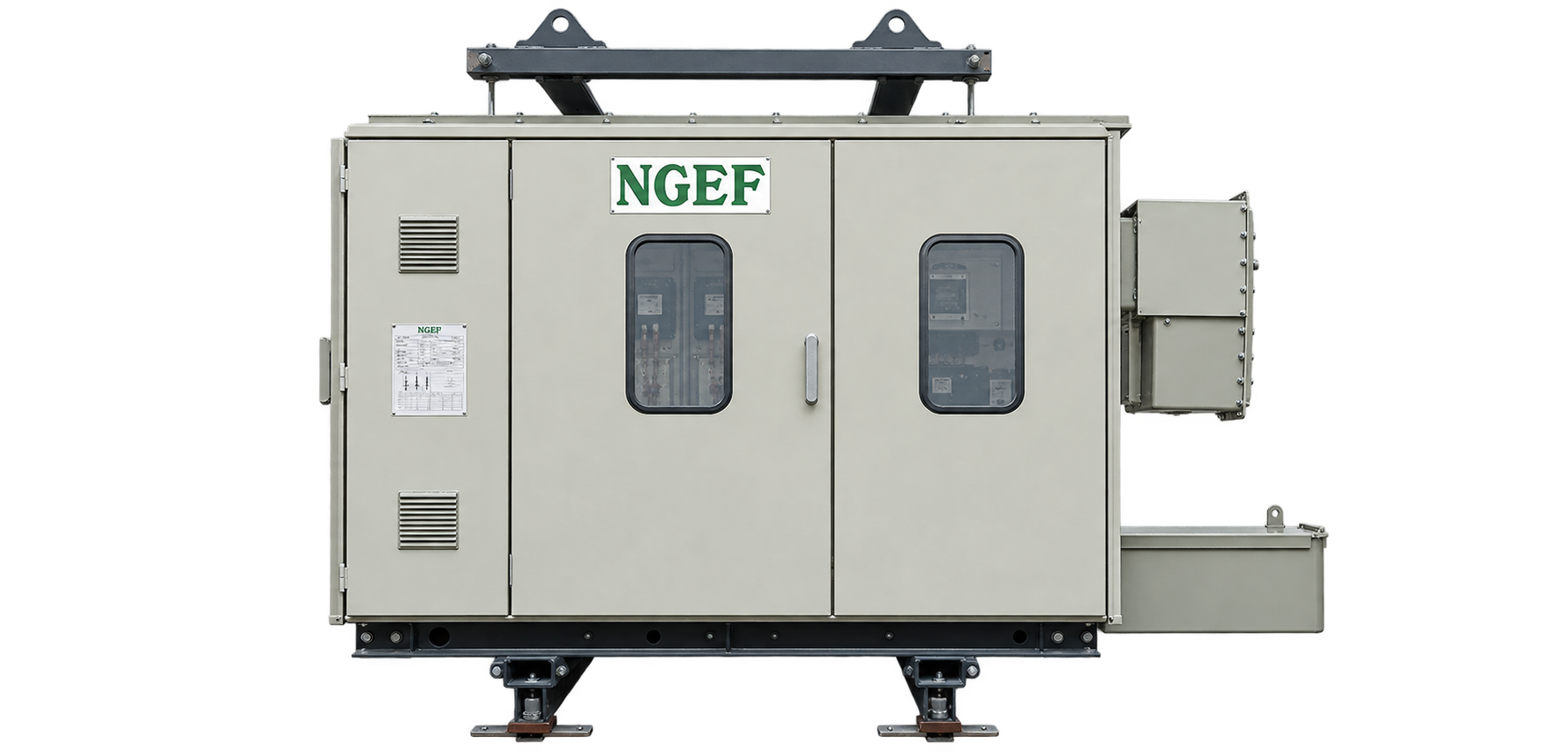

Dry Type Transformer
Flame-retardant dry-type transformer engineered for high-density indoor substations, commercial towers, and environmentally sensitive installations where liquid insulation is prohibited.
NGEF Transformers • Up to 2.5 MVA Heavy Metallurgy Duty Unit

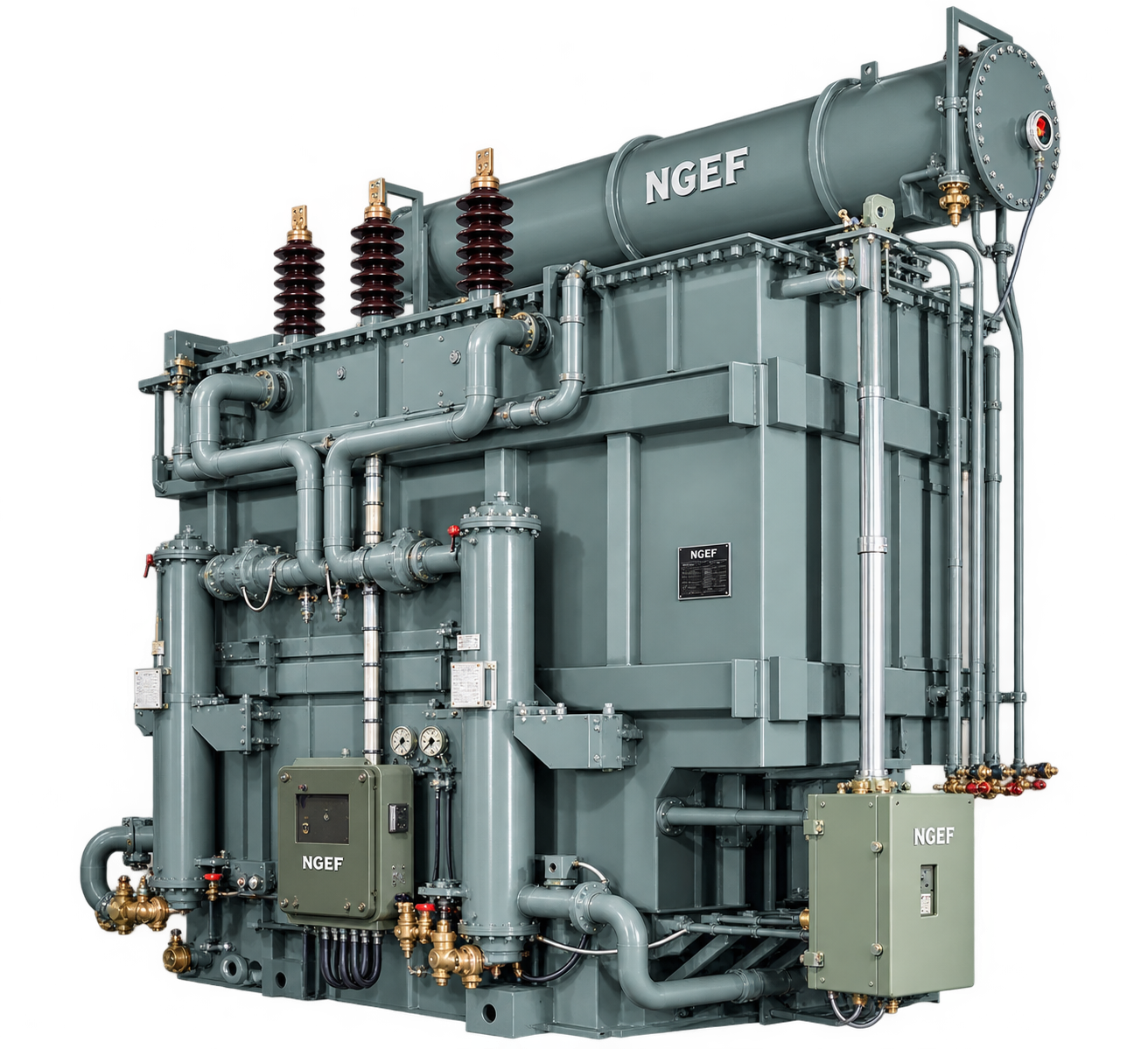

Arc Furnace Transformer
Specialized furnace duty transformer built to withstand severe cyclical electrical loads, mechanical stresses, and high thermal surges inherent to steel melt shops and arc furnace operations.
